HARRIS M600 4 Unit 578 mm 2004
Heidelberg 4 units cut off 578 mm x 965 mm year 2004
(1) Web press with automatic plate loading,
Rated speed; 44,000 rev/h
Folding JF44 with angle bars.
Press specifications:

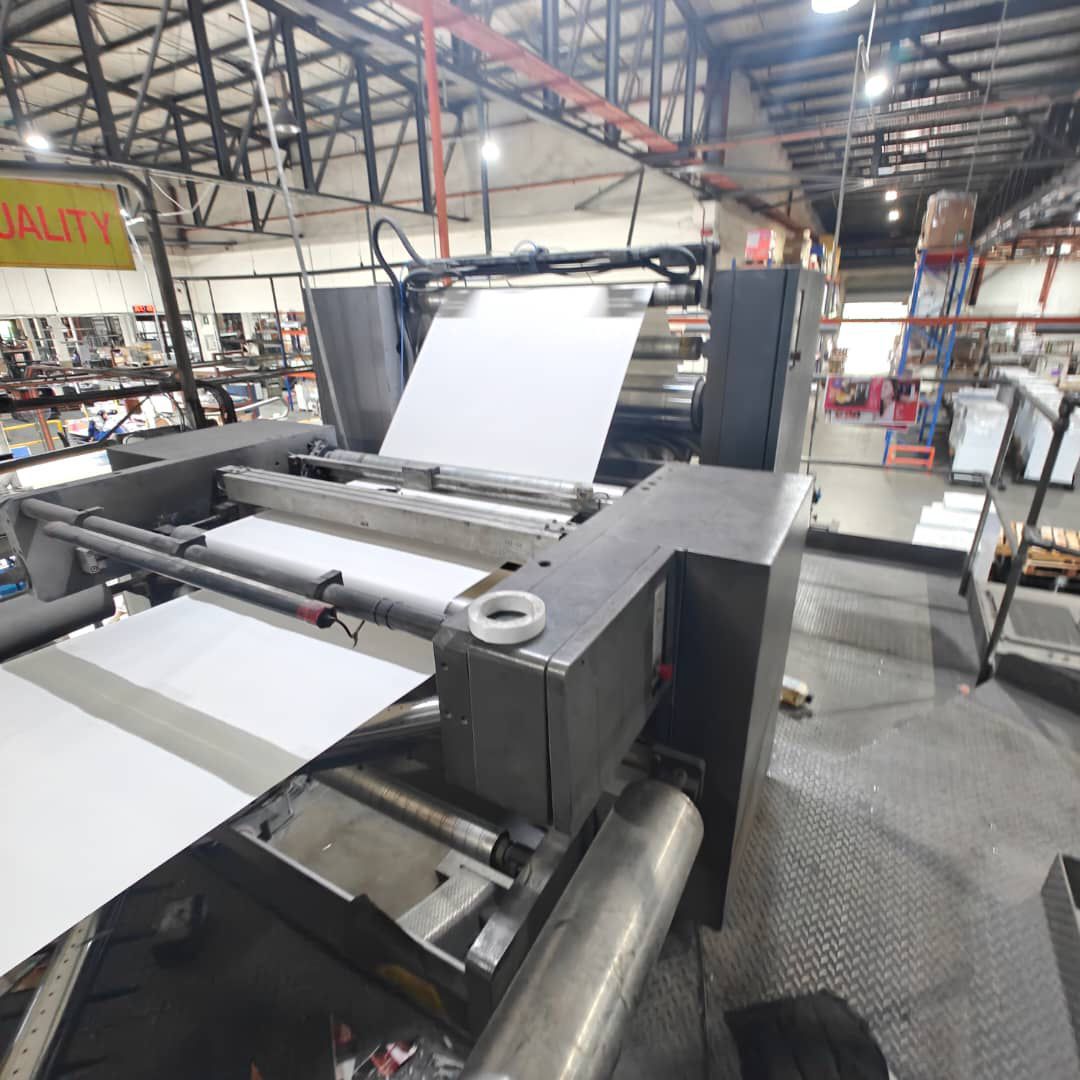

(1) Contiweb SH40-CI-1020 splicer, integrated power supply with QTI web guide

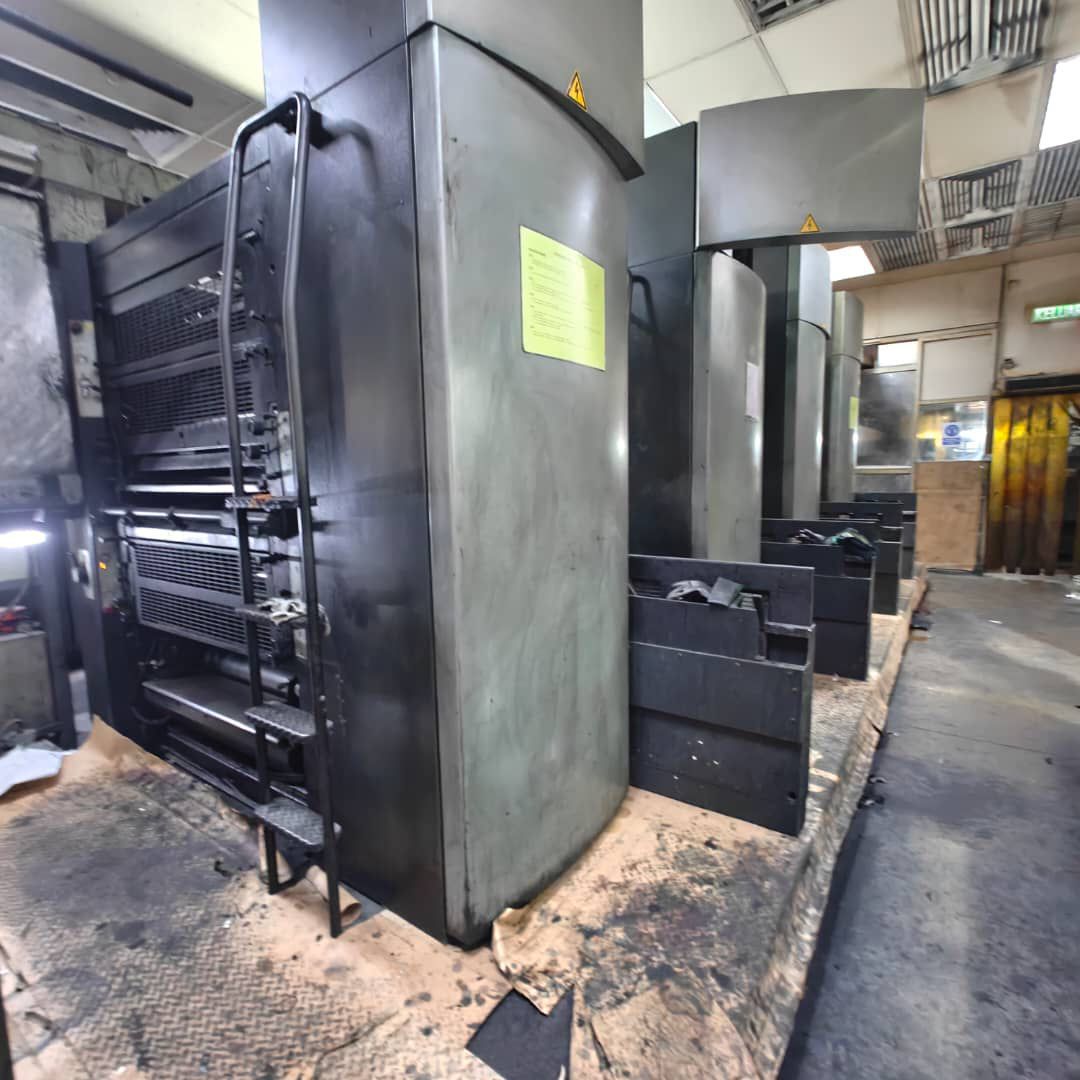

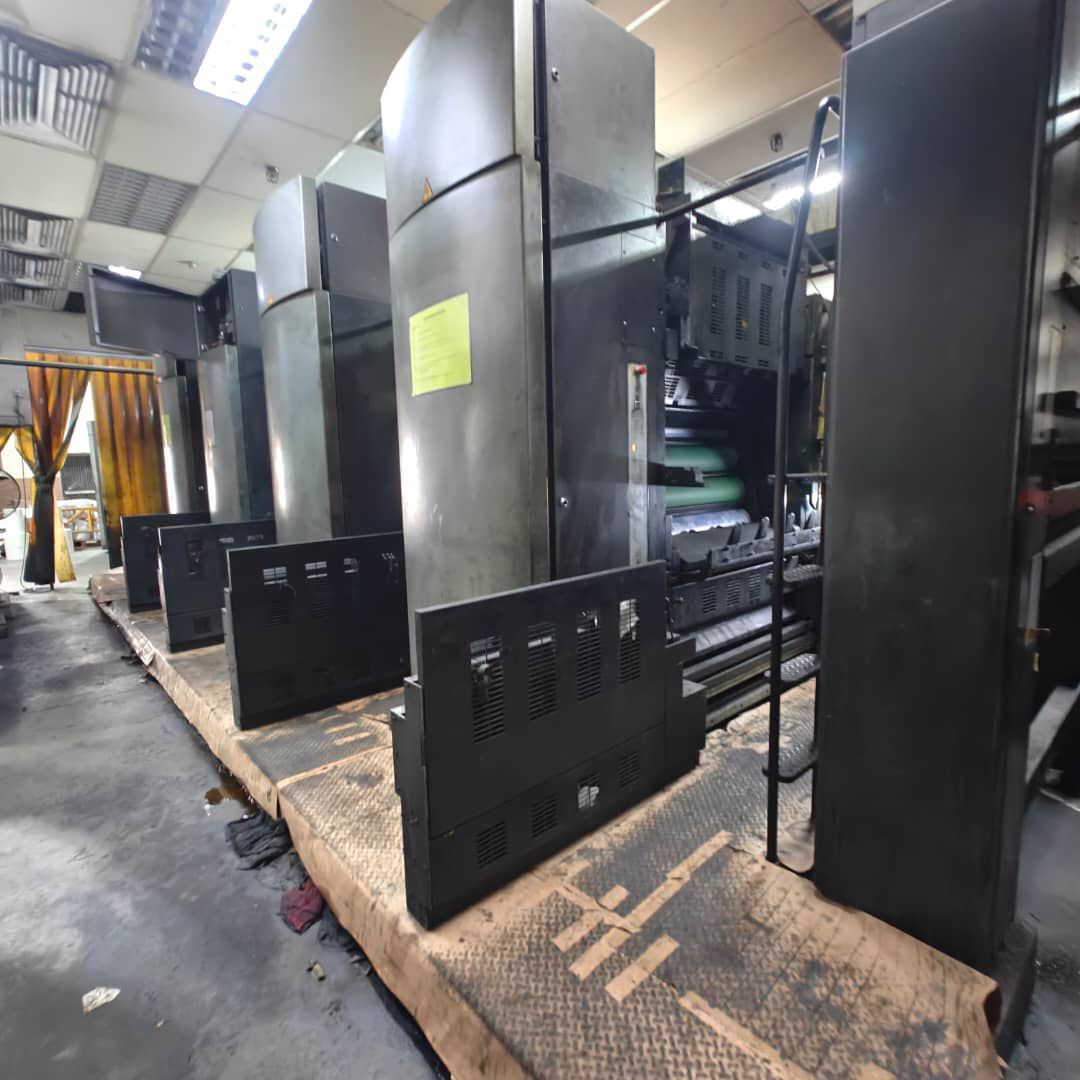

(4) Heidelberg Printing Units, Auto Plate, Ductrol, Remote Ink
(2) Operator consoles Main and auxiliary command
(1) QTI automatic color registration control system
(1) QTI cut control
(1) Band break detection package
(1) Technotrans Gamma 450 solution system with pri and conductivity meters and ink roller temperature control
(1) Technotrans Combi Unit
(1) Main press drive system
(1) Contiweb Ecotherm 75-1020 Dryer
(1) Goss Chill Rolls, 4-Rolls
(1) Goss Silicone Applicator with Technotrans Mixer
(1) Folder superstructure with 4 angle bars
(1) Goss JF-44 combination folder with folding
(1) Set of Conveyors
(1) Low pressure air blower
(1) Nela plate bender
(1) Nela Plate Punch
(1) Player Stacker
(1) Ink pumps
(1) Electrical Cabinets
You can do the following pagination.
4pp
8pp
12pp
16pp
24pp
32pp
