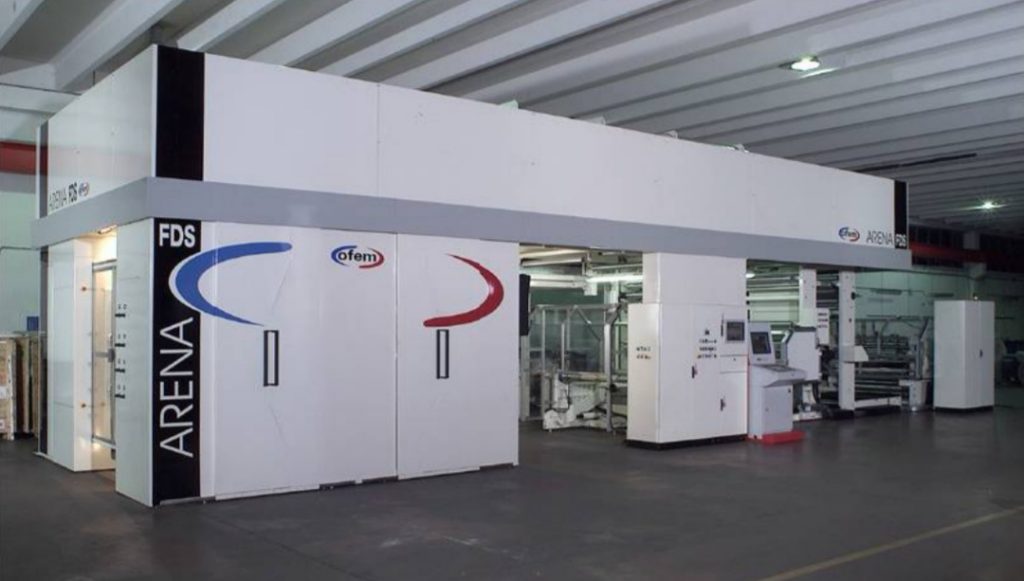

flexo 9 colores- 1200mm

ARENA
Year: 2002
Number of colors: 9
Print possibilityes: 8 + 1 downstream for coating UV and water based varnishes on the same
side of the web and in register with the spots printed on the CI section.
Gearless: Yes
Fast sleeve change: Yes
Web width (mm): 1250
Print width (mm): 1200
Min print repeat (mm): 350
Max print repeat (mm): 800
Unwinder type: Single axis
Max reel diameter unwinder (mm): 1300
Rewinder type: Single axis
Max reel diameter rewinder (mm): 1300
Drying: Hot air drying system. Thermic oil Heating source.
Videocamera: video inspection system BST-Genius.Quick registering system at machine start
up.
Web guides: 1 before printing and 1 before rewinding
Inking system: Enclosed doctor blade chambers with ceramic anilox rollers .8 ink pumps.
Anilox: Anilox sleeves ceramic coated and laser engraved as following: 1 anilox engraved to
HPF-W3-140 lines/cm., volume 11 g/m2; 2 anilox engraved to HPF1-120 lines/cm., volume 10,0
g/m2; 1 anilox engraved to HPF4-220 lines/cm., volume 5,5 g/m2; 1 anilox engraved to 70
lines/cm., volume 20,0 g/m2; 3 anilox engraved to 80 lines/cm., volume 16,0 g/m2;1 anilox
engraved to 100 lines/cm., volume 16,5 g/m2;2 anilox engraved to 100 lines/cm., volume 16,0
g/m2;1 anilox engraved to 110 lines/cm., volume 13,0 g/m2;2 anilox engraved to 120 lines/cm.,
volume 13,0 g/m2;1 anilox engraved to 140 lines/cm., volume 11,0 g/m2;1 anilox engraved to
160 lines/cm., volume 9,0 g/m2;5 anilox engraved to 180 lines/cm., volume 7,8 g/m2;5 anilox
engraved to 255 lines/cm., volume 5,0 g/m2;2 anilox engraved to 300 lines/cm., volume 4,2
g/m2.
Additional informations: Paper
Registers motorized remote controlled
Technoweb Rotativas
Page 1 of 4 Printed On 26/10/2018 11:24:58

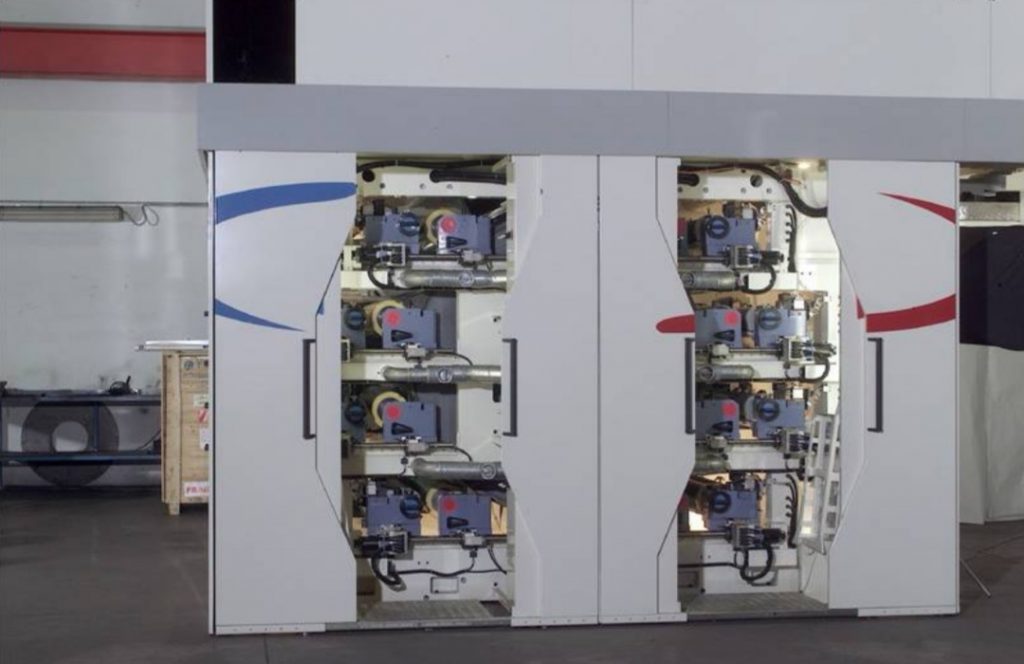

Decks’ positioning system automatic with 4 motors per deck and job repeatability program
Plate roller mandrels: 8 carbon fibre plate roller air mandrels diameter 108,342 mm. for the print
section; 1 plate roller air mandrels diameter 89,243 mm. for the print section.9 print sleeves to
choose among those on stock (only 9 as the rest will be kept by seller).
1 downstream printing unit (this unit is a geared type) for coating
water based and UV varnish in register with the Central impression
section (UV lamps offered apart).
